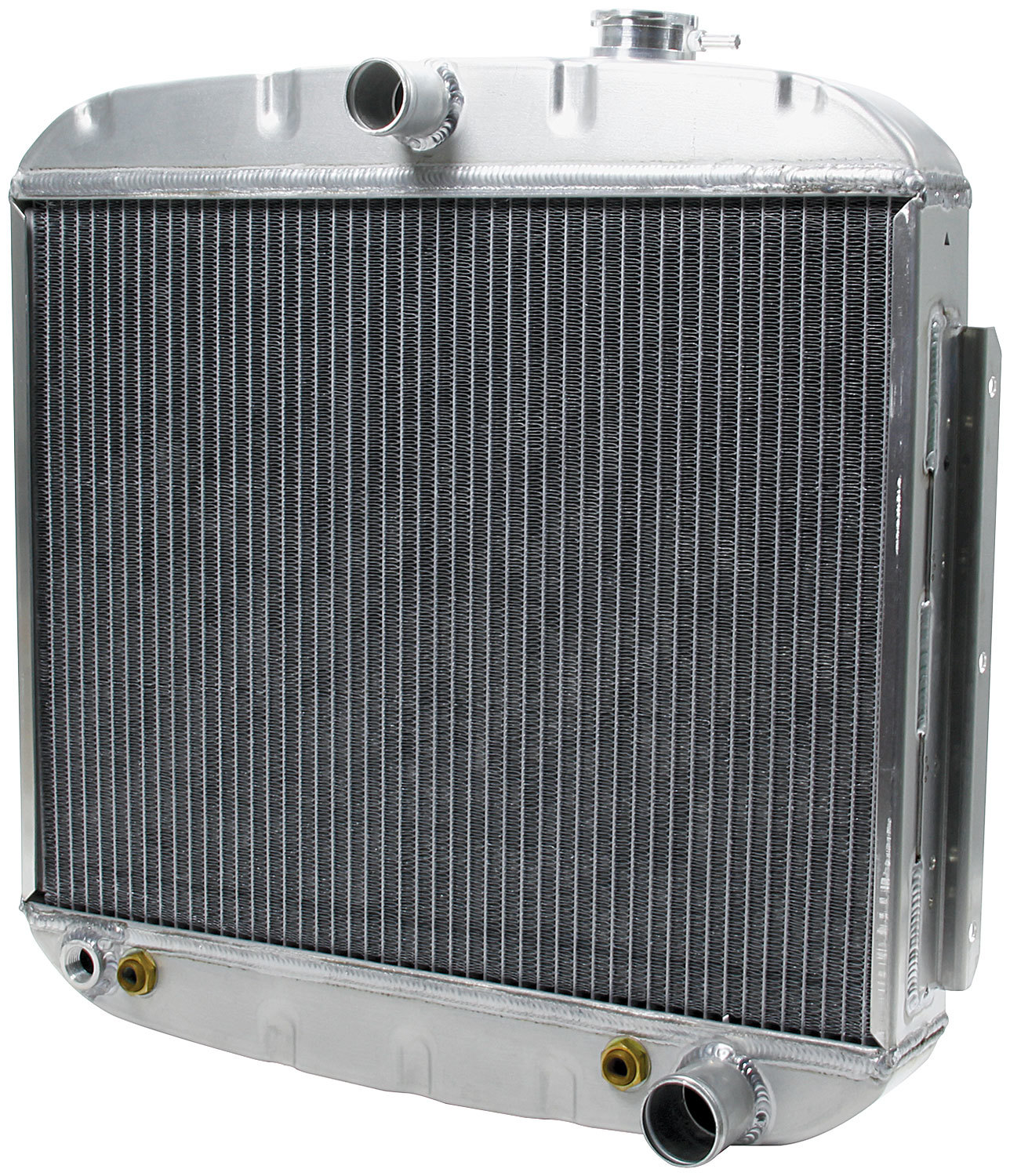

ALLSTAR PERFORMANCE Radiator 1955-57 Chevy 8 Cyl w/ Trans Cooler ALL30006
Description:
Radiator 1955-57 Chevy 8 Cyl w/ Trans Cooler
Radiator - 24.5 in W x 23 in H x 2.25 in D - Center Inlet - Passenger Side Outlet - Oil Cooler - Aluminum - Natural - Chevy Fullsize Car 1955-57 - Each
Radiator - 24.5 in W x 23 in H x 2.25 in D - Center Inlet - Passenger Side Outlet - Oil Cooler - Aluminum - Natural - Chevy Fullsize Car 1955-57 - Each
Brand:
ALLSTAR PERFORMANCE
Part #:
ALL30006
UPC:
848238017915
Length:
26.7 in.
Width:
26.4 in.
Height:
8.7 in.
Weight:
18.405 lb
Ship Alone:
YES
Product Notes:
THIS RADIATOR HAS MOUNTS WELDED-ON FOR APPLICATIONS ORIGINALLY EQUIPPED WITH A V-8 AND A SHORT WATER PUMP. THESE MOUNTS PLACE THE RADIATOR TOWARDS THE BACK OF THE RADIATOR SUPPORT (CLOSER TO THE ENGINE) WHICH MAY CAUSE FAN CLEARANCE PROBLEMS. USE ALL30005 FOR V-8'S WITH LONG WATER PUMPS. OVERALL SIZE IS 23.25 X 23.25 (including the filler neck) CORE WIDTH IS 22 1/4 NPT Transmission Line Fittings 1/2 NPT Heater Hose Fitting 1-1/2 Inlet(upper), 1-3/4 Outlet(lower)
