ALLSTAR PERFORMANCE Relay with Harness 30amp ALL76186
$9.69

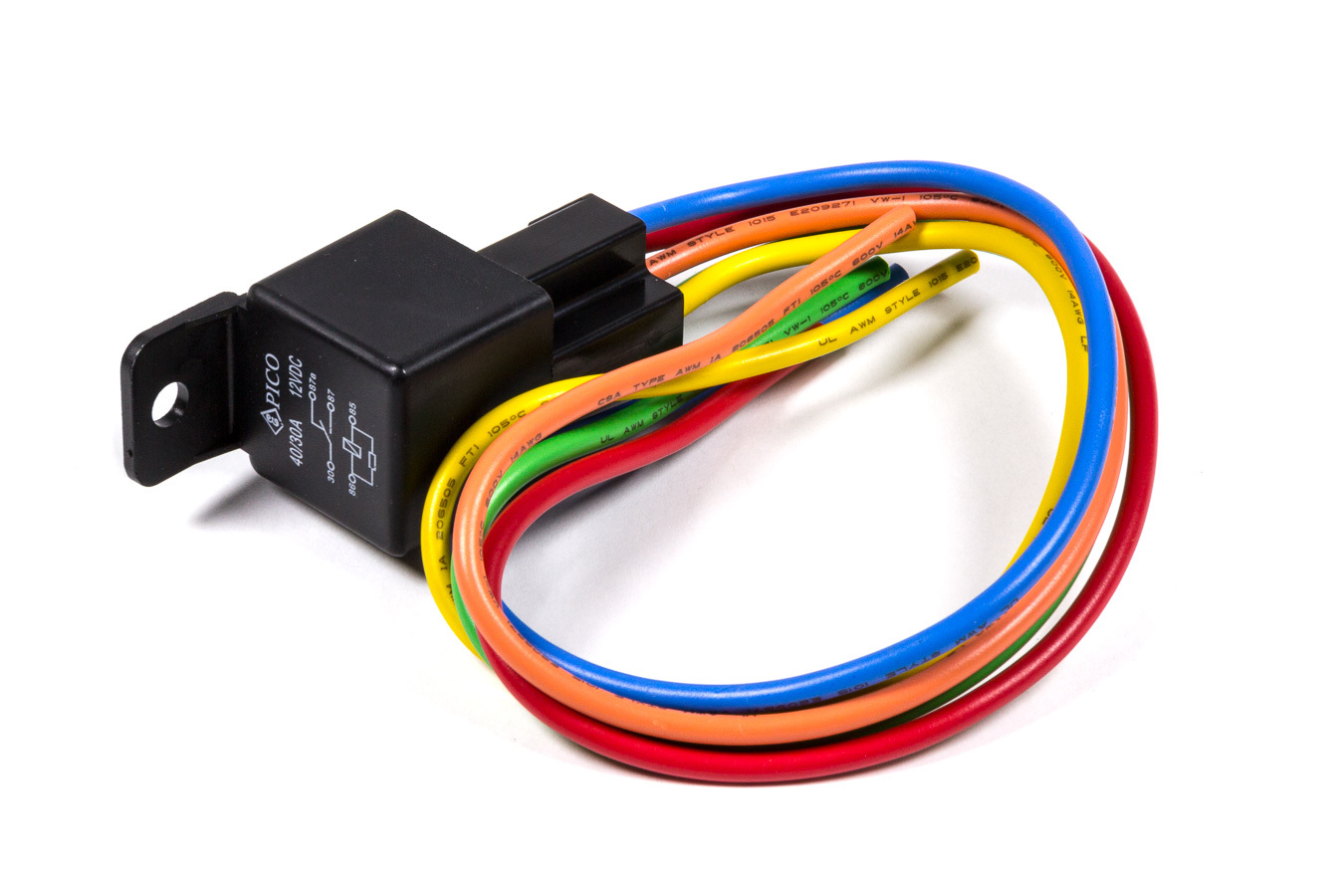

Relay with Harness 30amp
Relay Switch – 30 amps – 12V – Wiring Included – Universal – Kit
100 in stock
Description:
Relay with Harness 30amp
Relay Switch - 30 amps - 12V - Wiring Included - Universal - Kit
Relay Switch - 30 amps - 12V - Wiring Included - Universal - Kit
Brand:
ALLSTAR PERFORMANCE
Part #:
ALL76186
UPC:
848238074659
Length:
4.56 in.
Width:
3.75 in.
Height:
1.2 in.
Weight:
0.215 lb
Product Notes:
#30 Terminal From 12V + power supply which is protected by a circuit breaker or fuse rated at 30 amps. #85 Terminal Connect to a good chassis ground. This may also be used as a switch to ground (i.e. for a horn) when terminal #86 is connected to a constant fused power. #86 Terminal Switched 12V + power from a toggle switch or controlled side of ignition switch. #87 Terminal Connect to 12V + side of component to be activated by switch/relay. i.e. fuel pump, cooling fan etc. #87A Not commonly used, this terminal has power until relay is energized. Five lead harness - 3 12ga & 2 18ga
